The Grid

Placing components and routing traces is a cross between a puzzle and a fine art form. It's also relaxing and absorbing. Prepare to lose hours to the simple joy of tweaking your design.

A crucial tool in this process is the Grid. No, not the one from the Movie. The Grid in Eagle helps you design with pinpoint accuracy. It will help keep your traces the right distance apart. It will let you to line up components with excruciating accuracy. And it will help you measure pads and placements.

Displaying The Grid

You can display the Grid via the command bar. Type: grid on, and press enter.

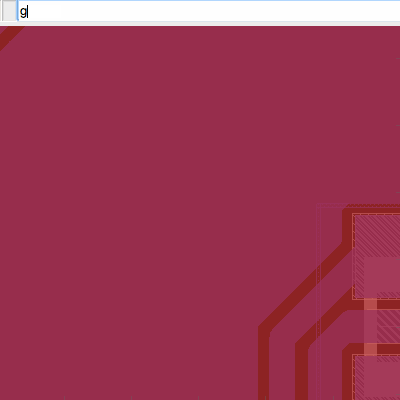

Toggling the grid on and off

To change the pitch of the grid, type: grid followed by the type of units (mm, inch, mil) and a number. For example might want:

  • grid inch 0.1 for laying out headers and spacing components
  • grid mil 16 for power traces
  • grid mil 8 for data traces
  • grid mil 1 for super pedantic tweaking
  • grid mm 1 for pads, buttons and layout

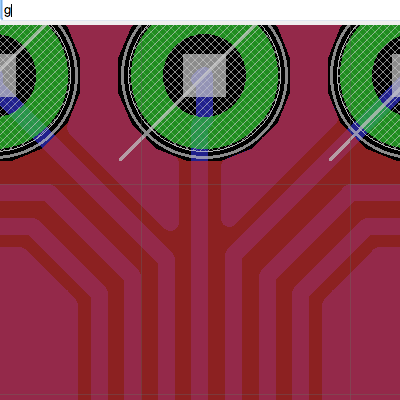

Various grid sizes

Mil vs Mm

In the land of PCB design, you'll not get far before you come across Mil. Mil is a unit of measurement. Mil is not short for millimeters. Mil means "milliinches" or "thousandths of an inch". The name is interchangeable with "thou", but Eagle has no idea what "thou" are.

When designing your circuit you'll find yourself using mil often. We measure trace widths in mil, and headers are spaced at 100mil or 0.1inch.

Snapping To The Grid

When you draw a route, a wire, a polygon or move a part Eagle will snap it to the grid. There are actually two grids at any one time. The main grid is the one you set with grid mil 8. There is also an alternate grid, which you can use for finer spacing.

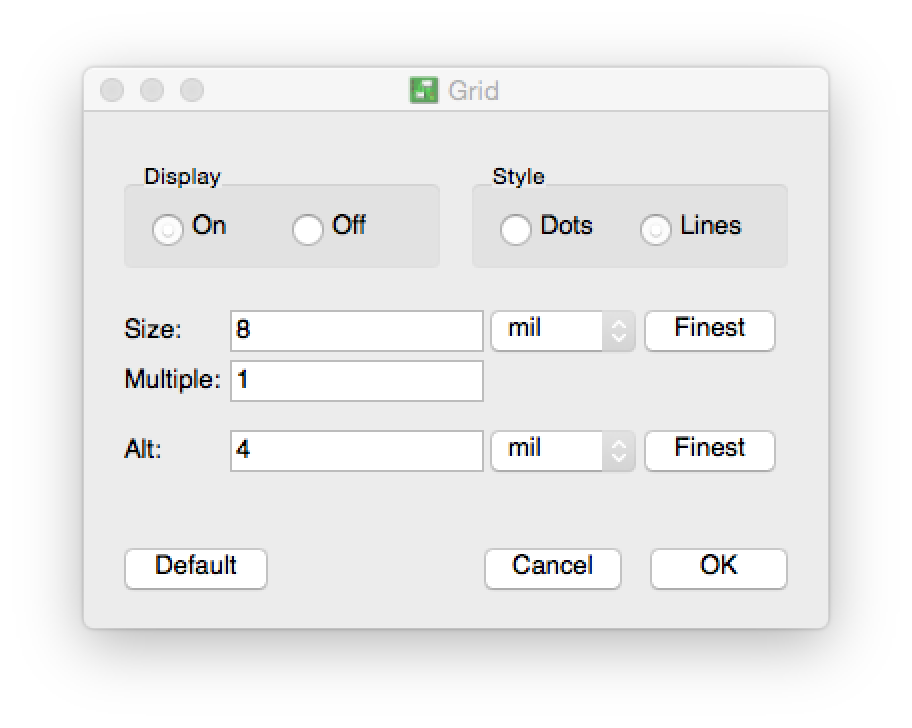

To set the alternate grid type grid alt mil 4 into the command-bar. You can also type just grid to see the grid options.

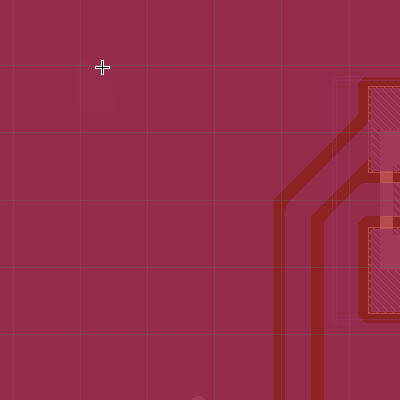

To snap to the alternate grid, hold down the alt key. This can be useful when you're lining up routes with pads or trying to squeeze a route between them.

Grid Lines

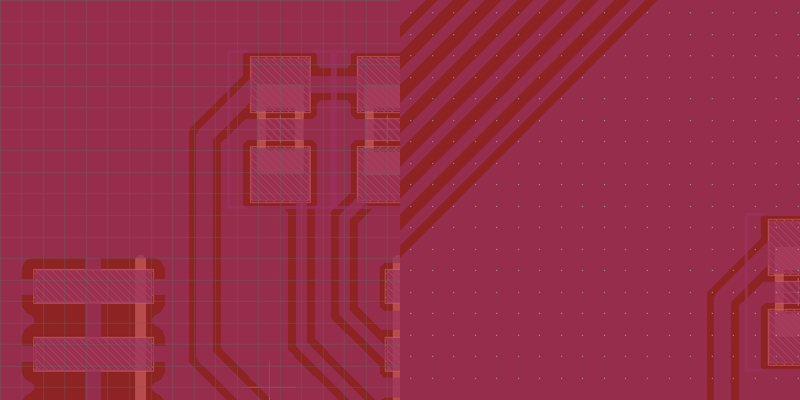

Grid lines are great for visually measuring things, but get noisy very quickly at small grid sizes. You can change the grid to dots by typing grid dots.

You can also change how often lines appear. If you want a fine 4mil grid with lines every 16 mil, for example, you can type: grid mil 4 4. That's a 4mil grid, with lines every 4 sets of 4.
